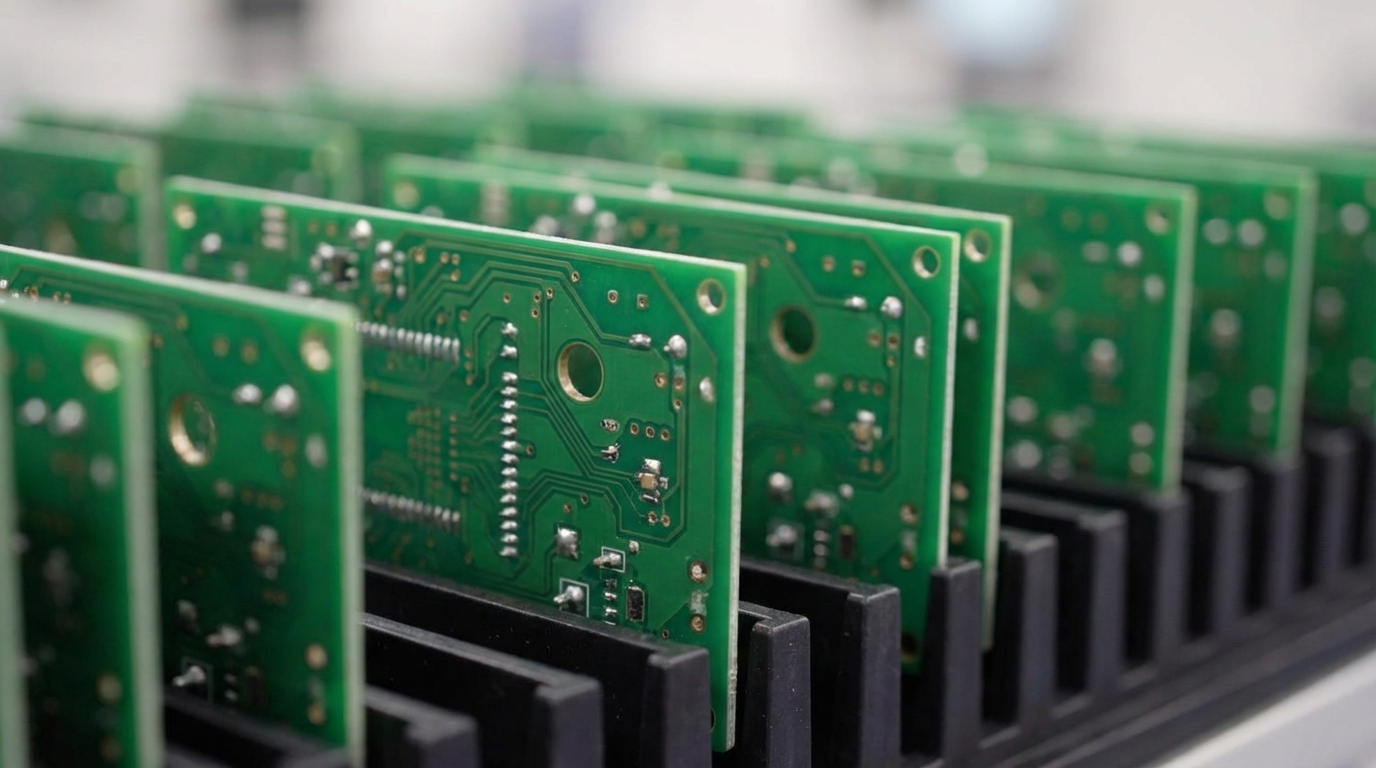

EMS Inc Electronics DFM Best Practices for PCBAs

Key Takeaways

1. Integrate DFM early to avoid costly redesigns in defense, aerospace, and medical PCBA projects by refining component selection, layout, and assembly.
2. Use 9 focused checklists covering component sourcing, pick-and-place, PCB routing, panelization, soldering, DFT, thermal management, interconnects, and EMS collaboration.
3. Prioritize thermal management with vias, heavy copper, and advanced options like silver sintering for high-power 2026 PCBAs.
4. Protect reliability with strong testability and compliance to IPC Class 3 standards, ITAR requirements, and counterfeit avoidance methods.
5. Partner with Pro-Active Engineering for ITAR-compliant DFM expertise and rapid 2-5 day prototyping, and request a quote today.

9 EMS DFM Best Practices for Manufacturable PCBAs

1. Component Selection and Sourcing for Reliable Builds

Select components that meet actual electrical requirements like voltage ratings, operating speed, signal integrity, and power consumption, using the most recent datasheet specifications. Pro-Active Engineering’s SiliconExpert integration provides real-time BOM scrubbing and lifecycle risk mitigation.

1. Verify component availability and lead times through integrated supply chain tools.
2. Pick standardized components and materials to reduce lead times, lower costs, and improve durability.
3. Apply SAE AS5553B counterfeit avoidance methodology for defense applications.
4. Maintain preferred parts lists aligned with EMS manufacturing capabilities.

2. Component Placement That Supports Pick-and-Place

Maintain adequate component spacing to prevent SMT placement issues, shorts, or interference between tall and short components. Thoughtful placement reduces assembly time and improves first-pass yields.

1. Confirm 100% PCB footprint match with BOM package specifications.
2. Reserve sufficient rework space around critical components.
3. Orient components consistently to support automated placement efficiency.
4. Avoid process conflicts such as DIP insertion that interferes with SMT soldering.

3. PCB Layout and Routing for Clean Fabrication

Apply DFM checks to PCB layout details such as trace widths, solder mask clearances, and pad spacing to resolve issues before production. Pro-Active’s thermal-optimized PCB architecture supports demanding high-power applications.

1. Review trace-to-trace clearances and copper layout to prevent fabrication issues.
2. Protect signal integrity for high-speed designs with controlled impedance routing.
3. Use solid ground plane strategies for low noise and stable reference.
4. Design for electromagnetic compatibility in regulated environments.

4. Panelization and Edge Clearances for Smooth Handling

Maintain minimum edge clearance of at least 10 mil (0.01 inches) between copper features and board edge to prevent damage during depanelization. Smart panelization improves production efficiency and supports scalable volume.

1. Design panels that support automated handling and depanelization.
2. Include fiducial markers for accurate placement and alignment.
3. Plan tooling holes and breakaway tabs in non-critical areas.
4. Review panel utilization to control material waste and cost.

5. Soldering and Via Design for Strong Joints

Keep hole sizes and tolerances appropriate, maintaining an aspect ratio of board thickness to hole diameter around 8:1 or 10:1 to prevent plating issues and drill breakage. Pro-Active follows IPC-A-610 Class 2 and Class 3 workmanship standards for mission-critical applications.

1. Use thermal reliefs on copper pours to improve solderability.
2. Size pads correctly for reliable solder joints and reflow profiles.
3. Place vias to support both thermal and electrical performance.
4. Specify solder mask openings that prevent bridging and solder starvation.

See Pro-Active’s Speed Shop turn DFM designs into 2-5 day prototypes and request a quote now.

6. Design for Testability (DFT) from Day One

Verify test-point rules as part of the comprehensive design checklist to confirm production readiness. Pro-Active’s 100% AOI and comprehensive testing protocols help ensure zero defects reach customers.

1. Include accessible test points for in-circuit testing coverage.
2. Plan layouts that support flying probe test access.
3. Define functional test interfaces early in the design cycle.
4. Evaluate boundary scan for complex, high-density designs.

7. Thermal Management for High-Power 2026 PCBAs

Higher power densities in 2026 PCBAs require stronger thermal management at design and assembly stages, using metal core boards, heavy copper layers, thermal vias, and specialized substrates. Pro-Active’s advanced thermal solutions include silver sintering and direct thermal path PCB technology.

1. Use strategic thermal via patterns to move heat away from hot devices.
2. Select copper thickness that supports current capacity and heat spreading.
3. Plan thermal relief patterns to control localized hot spots.
4. Evaluate metal-core constructions for sustained high-power operation.

8. Advanced Interconnect DFM for Mission-Critical Designs

Mission-critical applications depend on compact, high-performance interconnect solutions that extend beyond standard PCB assembly. Pro-Active’s wire bonding, flip chip assembly, and hybrid high-density capabilities support demanding aerospace and defense requirements.

1. Design for high-speed and high-density interconnect requirements.
2. Plan wire bonding pad layouts and physical access early.
3. Account for flip chip assembly thermal and mechanical constraints.
4. Integrate advanced packaging during the initial design phase.

9. Early EMS Collaboration and Data-Driven Review

A global EMS provider using cloud-based ERP with real-time BOM intelligence achieved a 25% improvement in on-time delivery and a 60% decrease in emergency air freight costs. Early EMS collaboration from design stages embeds DFM and DFT, improving PCBA manufacturability and using data-driven sourcing tools.

1. Engage EMS partners during initial design phases, not after layout freeze.
2. Hold regular DFM review meetings with manufacturing and test teams.
3. Use real-time BOM intelligence to guide component decisions.
4. Adopt AI-driven DFM analysis tools for automated compliance checks.

Why Pro-Active Engineering Fits Defense, Aerospace, and Medical Programs

Pro-Active Engineering delivers end-to-end PCBA solutions with ISO 9001:2015, AS9100, ITAR, JCP, and Nadcap certifications. Their 1-piece MOQ capability and 100% AOI inspection protect quality from prototype through full production. Their integrated Wisconsin facility reduces communication gaps and provides full traceability for defense programs such as Leonardo DRS projects.

Their engineering-driven approach combines PCB layout, embedded control, mechanical design, firmware, and test system development under one roof. This structure removes vendor fragmentation and supports advanced capabilities such as silver sintering, direct thermal path technology, and wire bonding that many traditional contract manufacturers do not offer.

Choose Pro-Active for DFM success and request a quote today.

FAQs

What is EMS DFM for PCBA manufacturing?

EMS DFM for PCBA manufacturing integrates design refinement with manufacturing processes from the earliest stages. It covers component selection aligned with assembly capabilities, layout tuned for automated placement, thermal management planning, and testability design. This approach reduces redesign cycles, improves first-pass yields, and supports a smooth transition from prototype to production.

How does DFM apply to ITAR-compliant defense PCBAs?

ITAR-compliant defense PCBAs require additional DFM steps such as secure supply chain verification, counterfeit component avoidance using SAE AS5553B methodology, and strong documentation traceability. Defense applications demand Class 3 IPC workmanship standards, ruggedization for extreme environments, and long-term component availability planning. Early collaboration with ITAR-registered EMS providers maintains compliance throughout design and manufacturing.

What are the key thermal management DFM practices for high-power PCBAs?

High-power PCBA thermal management relies on strategic thermal via placement, heavy copper integration, and advanced materials such as metal-core substrates. Design work includes thermal relief patterns around high-power components, copper thickness choices for current capacity, and heat spreader integration. Advanced techniques include silver sintering for direct thermal paths and specialized substrates that tolerate extreme thermal cycling in mission-critical applications.

How do AI-driven DFM tools improve PCBA manufacturability?

AI-driven DFM tools provide automated design rule checking, real-time component availability analysis, and early identification of likely manufacturing issues. These tools connect with cloud-based ERP systems to deliver real-time BOM intelligence that reduces component shortages and production delays. They support faster design iterations, automated compliance checks against IPC standards, and early detection of potential assembly problems before prototype fabrication.

What timeline improvements can early EMS collaboration provide?

Early EMS collaboration can cut PCBA development timelines from 6–18 months to roughly 3–6 months total, including DFM review, prototyping, and production ramp-up. This acceleration comes from established supply chains, integrated design and manufacturing workflows, and early visibility into potential risks. Real-time collaboration tools and cloud-based systems also reduce emergency procurement costs and help prevent production stops caused by component unavailability.

Conclusion

These 9 EMS DFM best practices create a clear framework for manufacturable PCBAs in defense, aerospace, and medical applications. Core checklist items include component standardization, adequate spacing for automated assembly, robust thermal planning, and early EMS collaboration supported by real-time tools.

Pro-Active Engineering’s integrated approach reduces 2026 supply chain risks while supporting rapid prototypes and scalable production. Their ITAR-compliant facility, advanced thermal technologies, and 30 years of experience help mission-critical PCBAs meet demanding reliability standards.
